STM32F103C8 Development Board End-to-end design example Demonstrates circuit blocks API

04-stm32-devboard

Renders

2D Front render not available
2D Front
2D Back render not available
2D Back

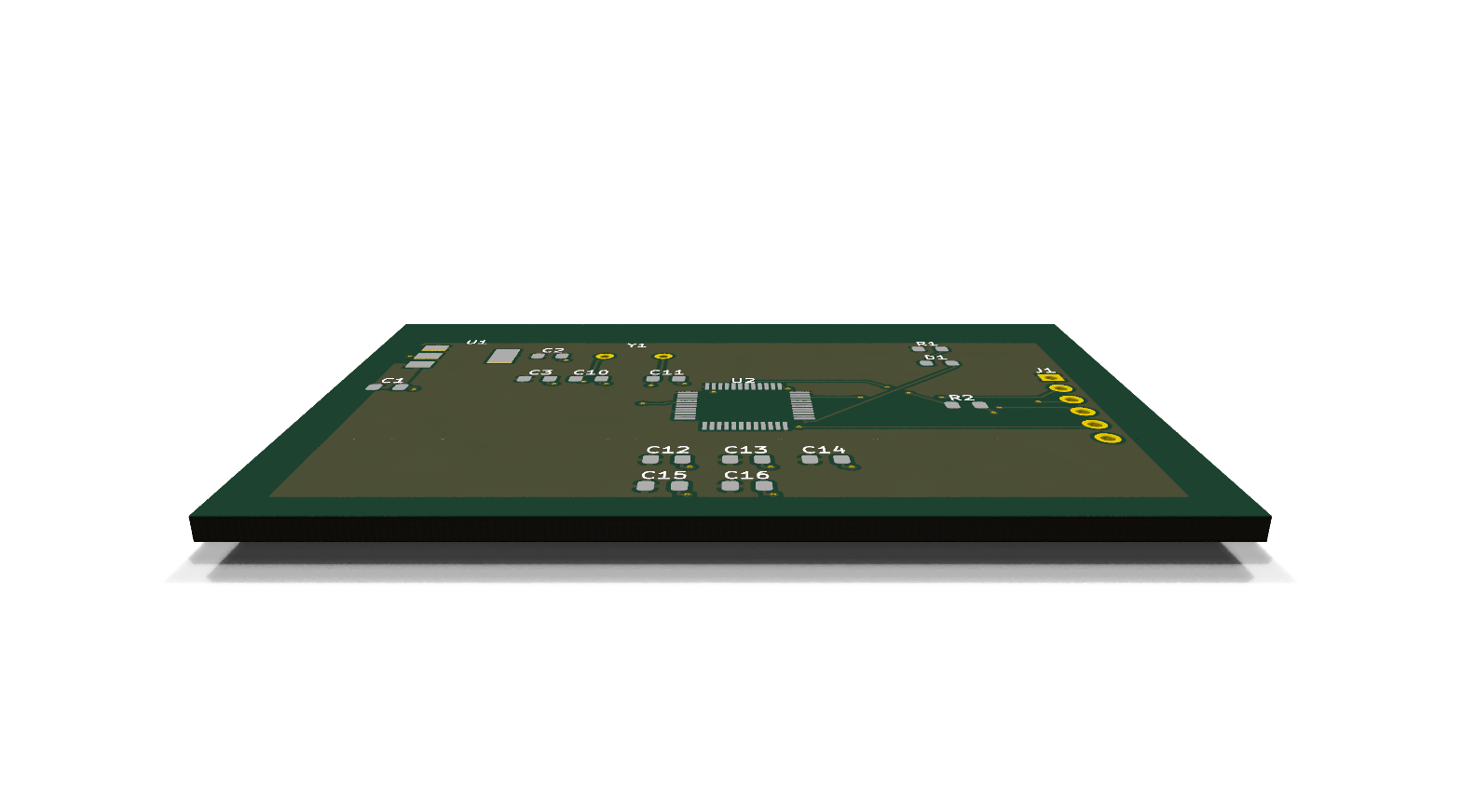

3D Front render of stm32_devboard_routed
3D Front

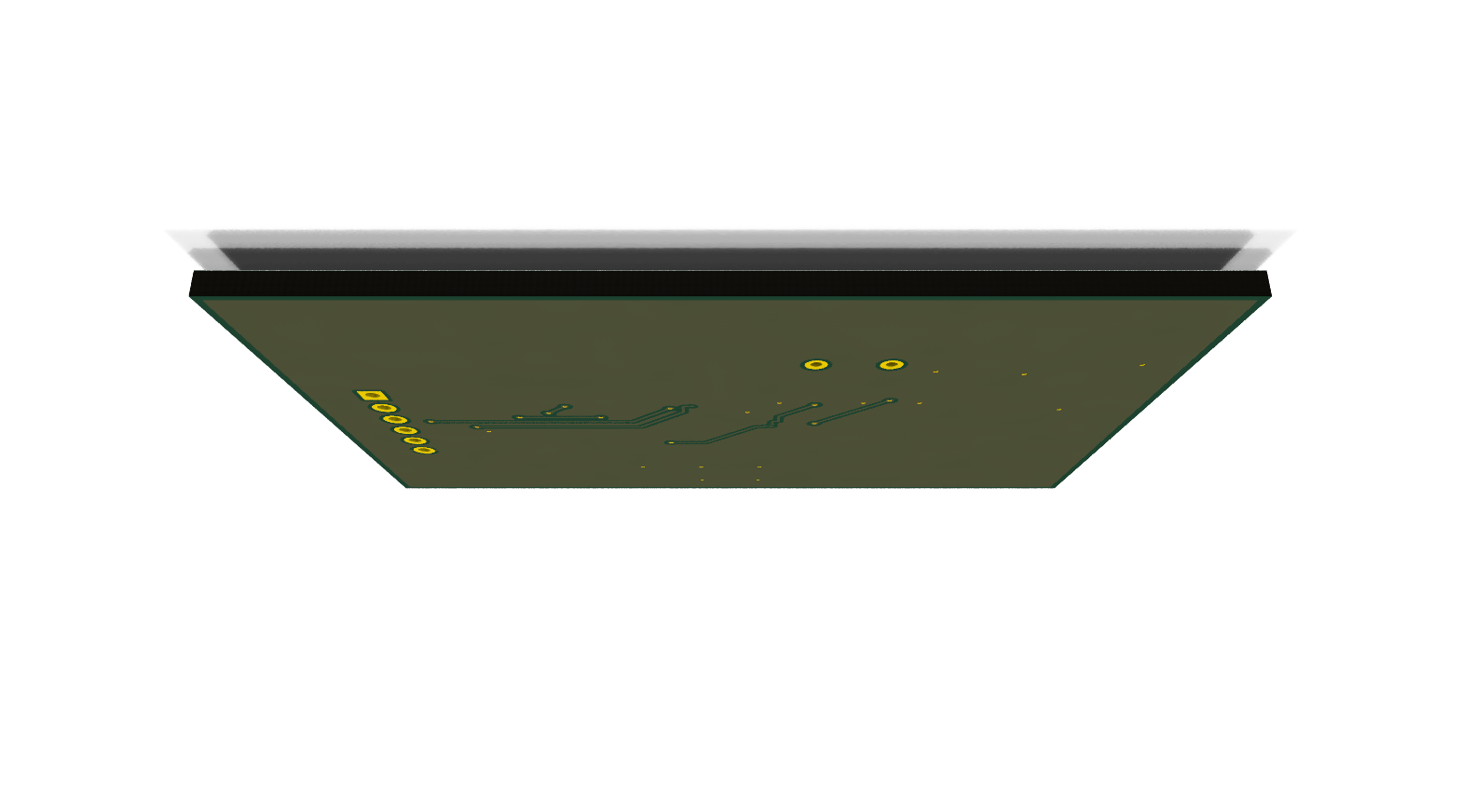

3D Back render of stm32_devboard_routed
3D Back

Interactive Viewer

Loading interactive view…

Metrics

Build Status Ready
Nets Routed 100.0%
DRC Violations 4
Layers 2
Board Size 60 × 40 mm
Parts 17
Cost (per board) $4.26
Batch Qty 5 boards
Batch Total $21.30
Data Generated 2026-06-12T06:36:15.615711+00:00
