diffpair_test_routed

Ready

Differential Pair Test Board Multi-protocol HSDI regression testbench Epic #2556 Phase 4L (issue #2658)

06-diffpair-test

Renders

2D Front render not available
2D Front
2D Back render not available
2D Back

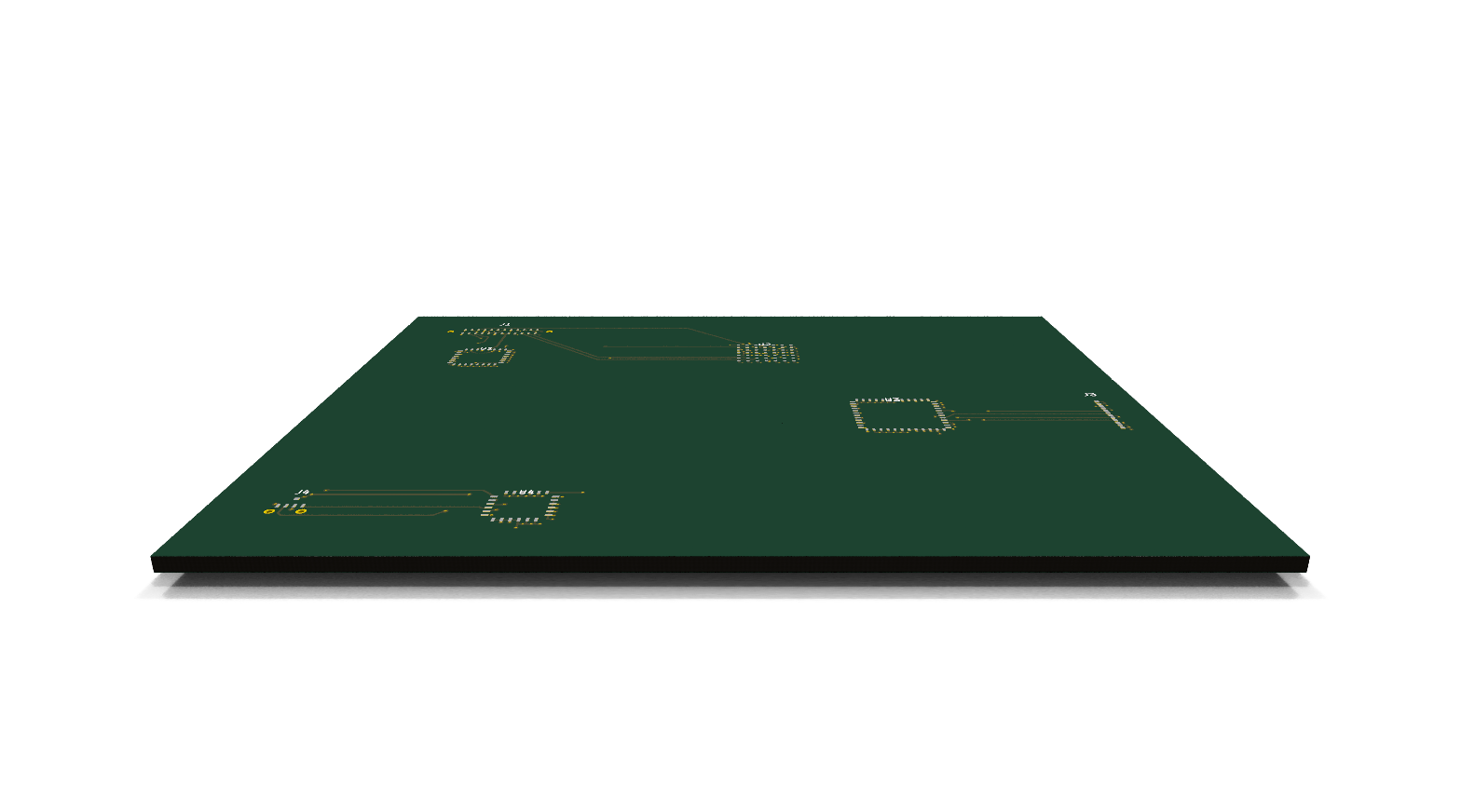

3D Front render of diffpair_test_routed
3D Front

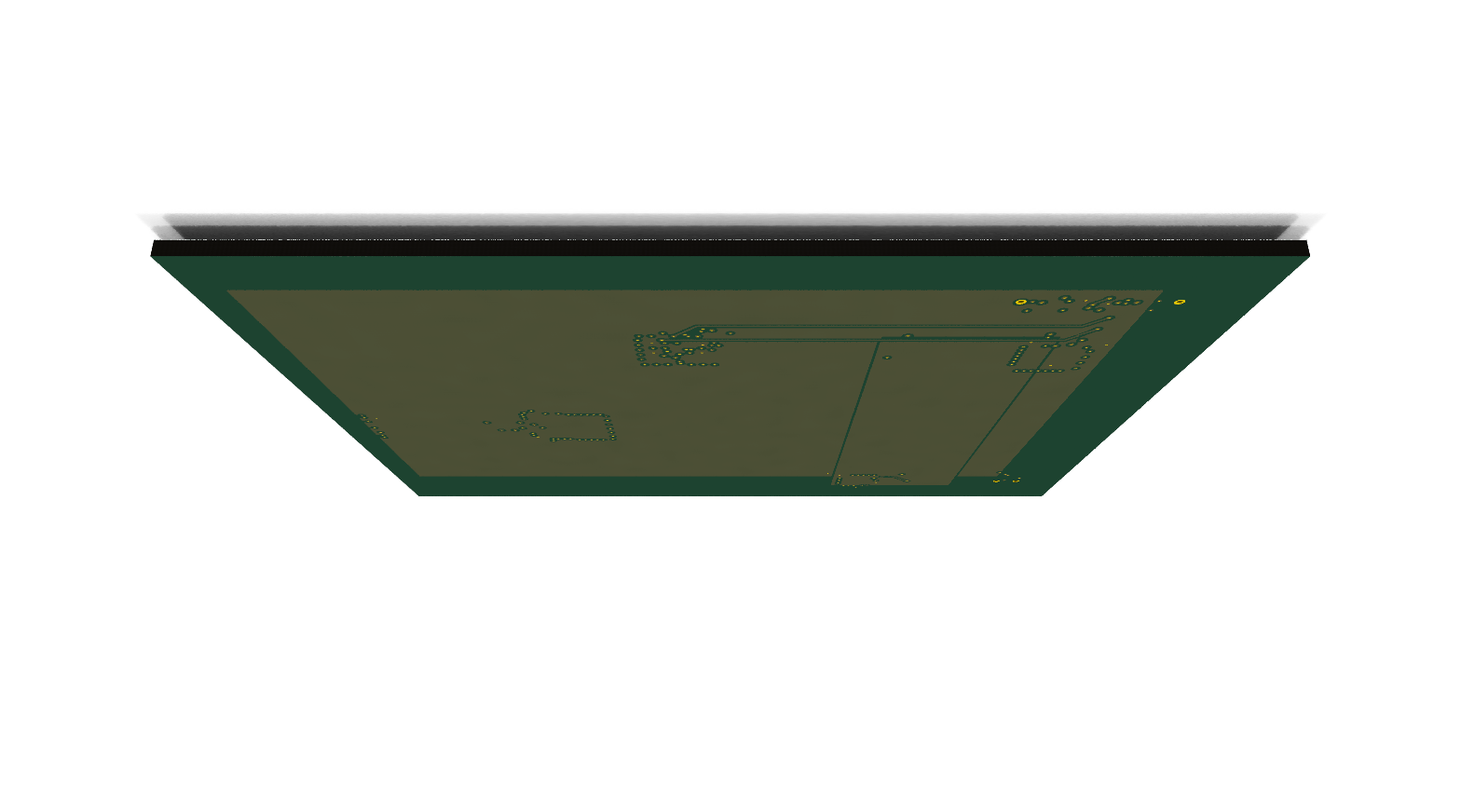

3D Back render of diffpair_test_routed
3D Back

Interactive Viewer

Loading interactive view…

Metrics

Build Status Ready
Nets Routed 100.0%
DRC Violations 2
Layers 4
Board Size 100 × 80 mm
Parts 7
Cost (per board) $7.95
Batch Qty 5 boards
Batch Total $39.74
Data Generated 2026-06-12T06:37:02.167365+00:00
