charlieplex_3x3_routed

Ready

Charlieplex LED Grid 3x3 LED matrix using charlieplexing technique 9 LEDs driven by 4 GPIO pins

02-charlieplex-led

Renders

2D Front render not available
2D Front
2D Back render not available
2D Back

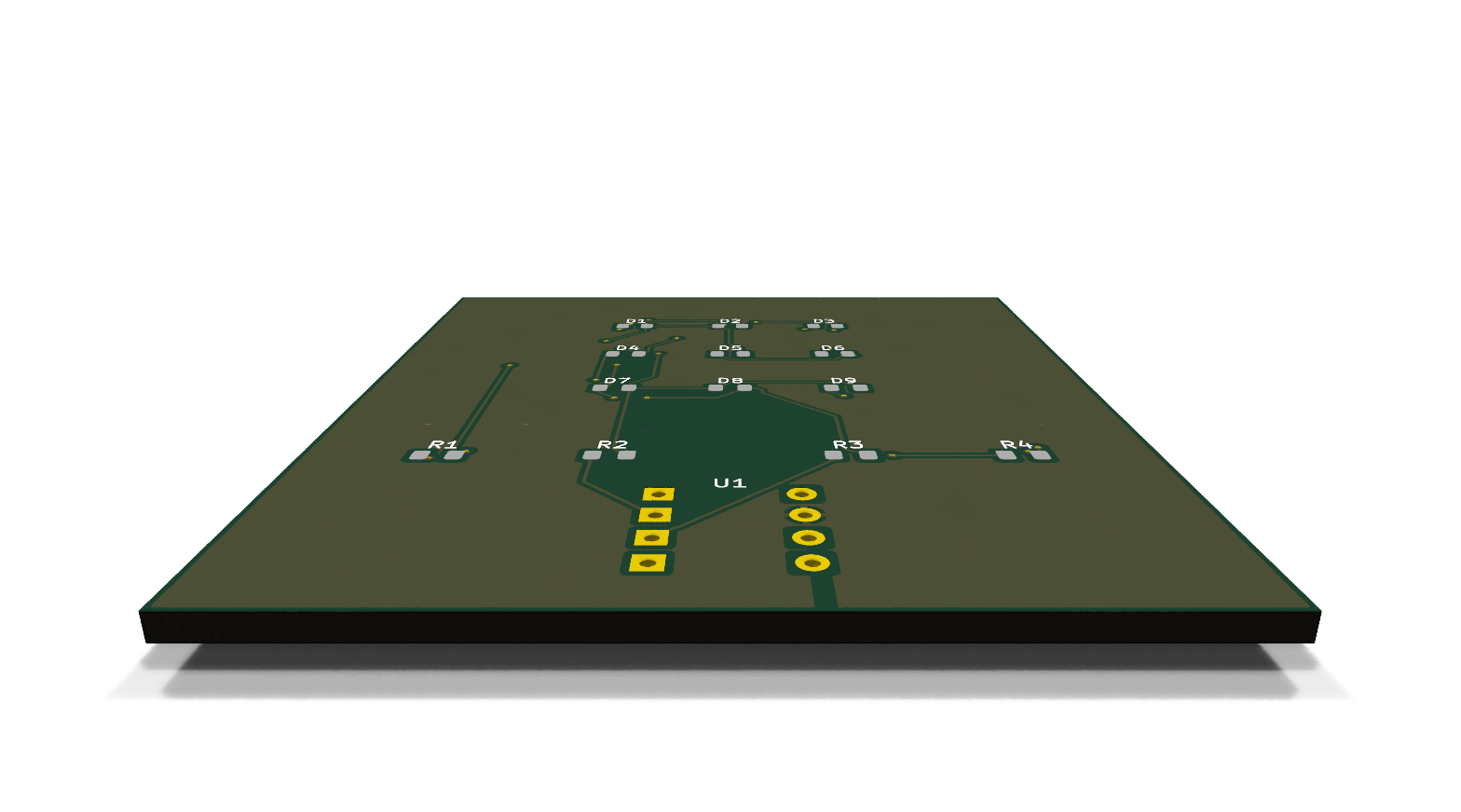

3D Front render of charlieplex_3x3_routed
3D Front

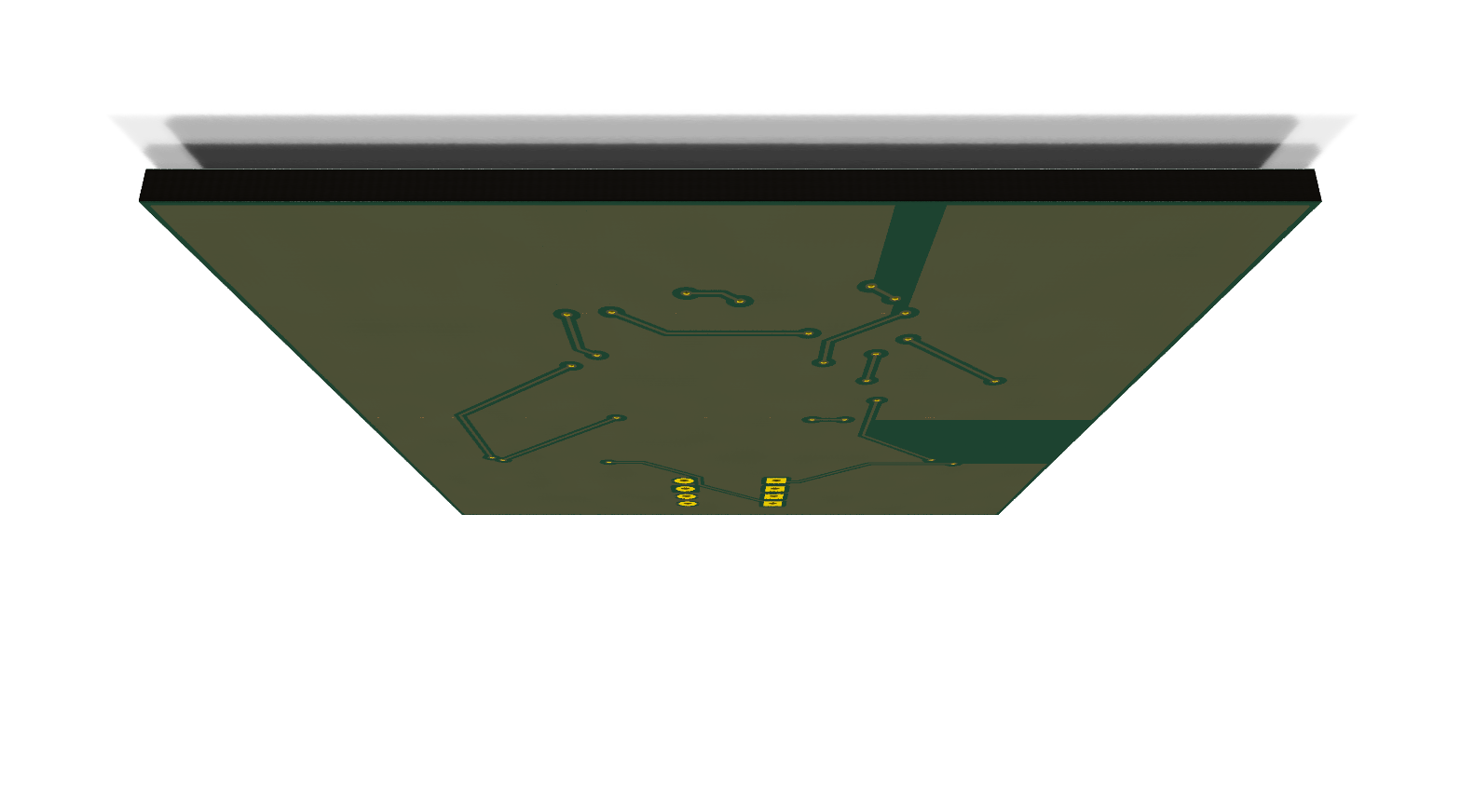

3D Back render of charlieplex_3x3_routed
3D Back

Interactive Viewer

Loading interactive view…

Metrics

Build Status Ready
Nets Routed 100.0%
DRC Violations 0
Layers 2
Board Size 50 × 55 mm
Parts 14
Cost (per board) $3.52
Batch Qty 5 boards
Batch Total $17.62
Data Generated 2026-06-12T06:34:54.417675+00:00
